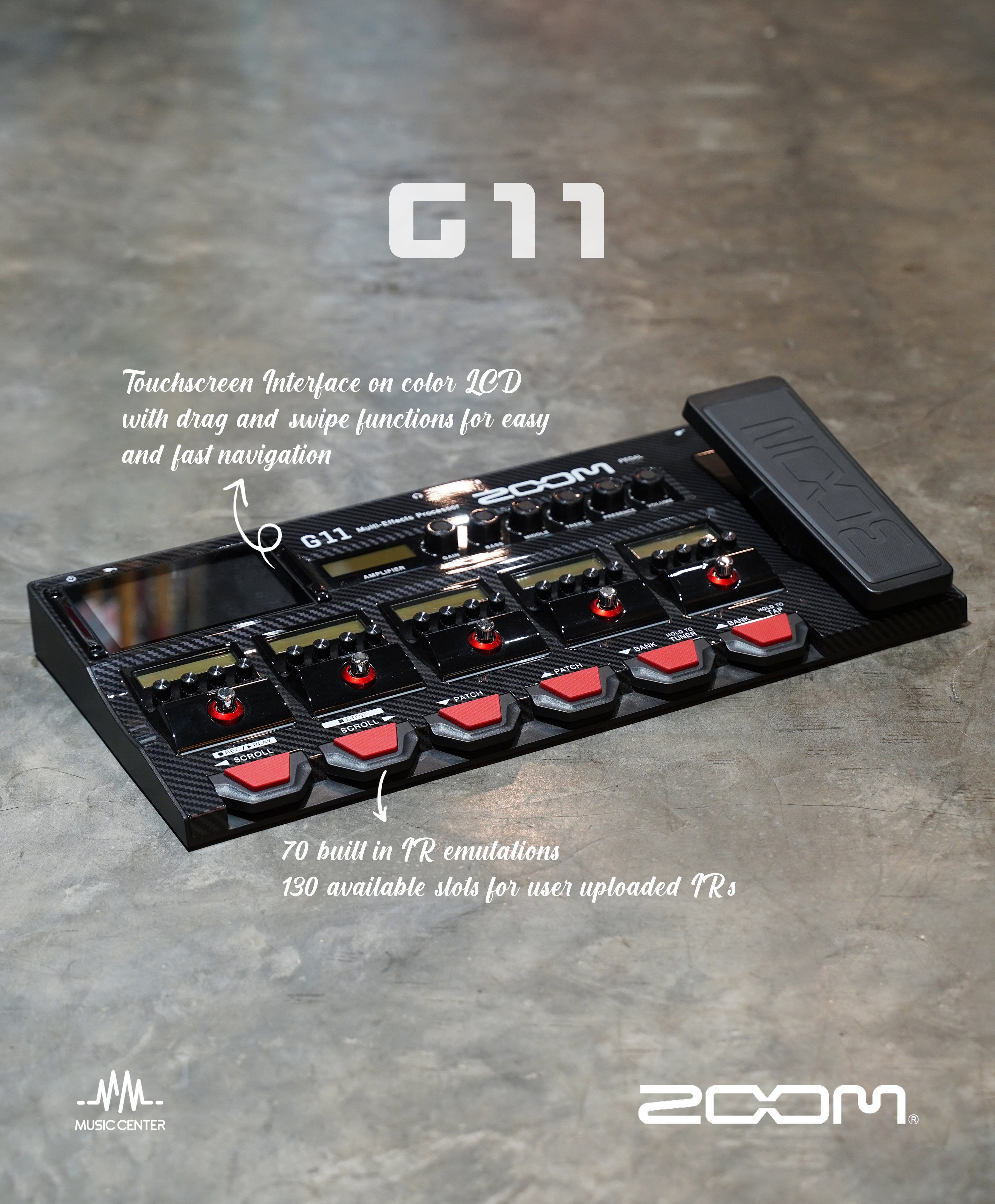

ZOOM G11 Guitar Multi Effect Processor

Rp 11.900.000,00
Rp 11.900.000,00

Product details

Description

Features :

  • Integrated pedal board with dedicated amp modeling panel, five stomp switches and expression/volume Control
  • Touchscreen interface on color LCD with drag and swipe functions for easy and fast navigation
  • Chain up to nine effects plus an amplifier emulation
  • Original amp modeling combinations
  • Original distortion and modulation effects
  • 70 built in IR emulations plus 130 available slots for user uploaded IR's
  • Two send/return effects loop plus MIDI in/out
  • 5-minute stereo looper
  • 68 built-in rhythm patterns
  • USB audio interface for direct recording to your DAW
  • Remote iOS connection for using Handy Guitar Lab via Bluetooth adapter (BTA-1)
  • Compatible with Zoom Guitar Lab to download additional effects

Specification :

Maximum number of simultaneous effects : Amplifier + 9 effects
User patches : 240
Sampling frequency: 44.1 kHz
A/D conversion: 24-bit 128× oversampling
D/A conversion: 24-bit 128× oversampling
Signal processing: 32-bit
Frequency characteristics: 20 Hz – 20 kHz (+1 dB/−2 dB) (10kΩ load)
Displays: 5" TFT color LCD (800×480) Dot-matrix LCDs (128×32) (6)

INPUTS

INPUT: Standard mono phone jack Rated input level: -20 dBuInput impedance (line): 500 kΩ
RETURN: Standard mono phone jacks (2) Rated input level: -20 dBuInput impedance (line): 1 MΩ
AUX IN: Stereo mini jack Rated input level: -10 dBuInput impedance (line): 10 kΩ

OUTPUTS

Left/Right: Standard mono phone jack Maximum output level:INST/LINE +11.4 dBu/+19 dBu (when output impedance 10 kΩ or higher)
PHONES: Standard stereo phone jack Maximum output level:Line +11.4 dBu (when output impedance 10 kΩ or higher)Headphones 24 mW + 24 mW (at 32Ω load)
SEND: Standard mono phone jacks (2) Maximum output level:Line +11.4 dBu (when output impedance 10 kΩ or higher)
Input S/N : 123 dB
Noise floor (residual noise): Left/Right : INST/LINE −99.5 dBu/−92.5 dBuSEND: -99.0 dBu
MIDI IN/OUT: 5-pin DIN jacks
Control input: FP02M input
USB DEVICE: Connector: USB2.0 Type-C / Supported cable: Type-C cable GuitarLab: USB1.1 Full SpeedAudio Interface: USB2.0 High Speed, 44.1 kHz/32-bit 4in 4out• Use cables for data transfer. USB bus power not supported.
USB HOST: Connector: USB2.0 Type-A / Standard: USB 2.0 High Speed • Use a USB thumb drive.
REMOTE: ZOOM BTA-1 or other dedicated wireless adapter
External dimensions: 253 mm (D) × 495 mm (W) × 64 mm (H)
Weight: 2.8 kg
