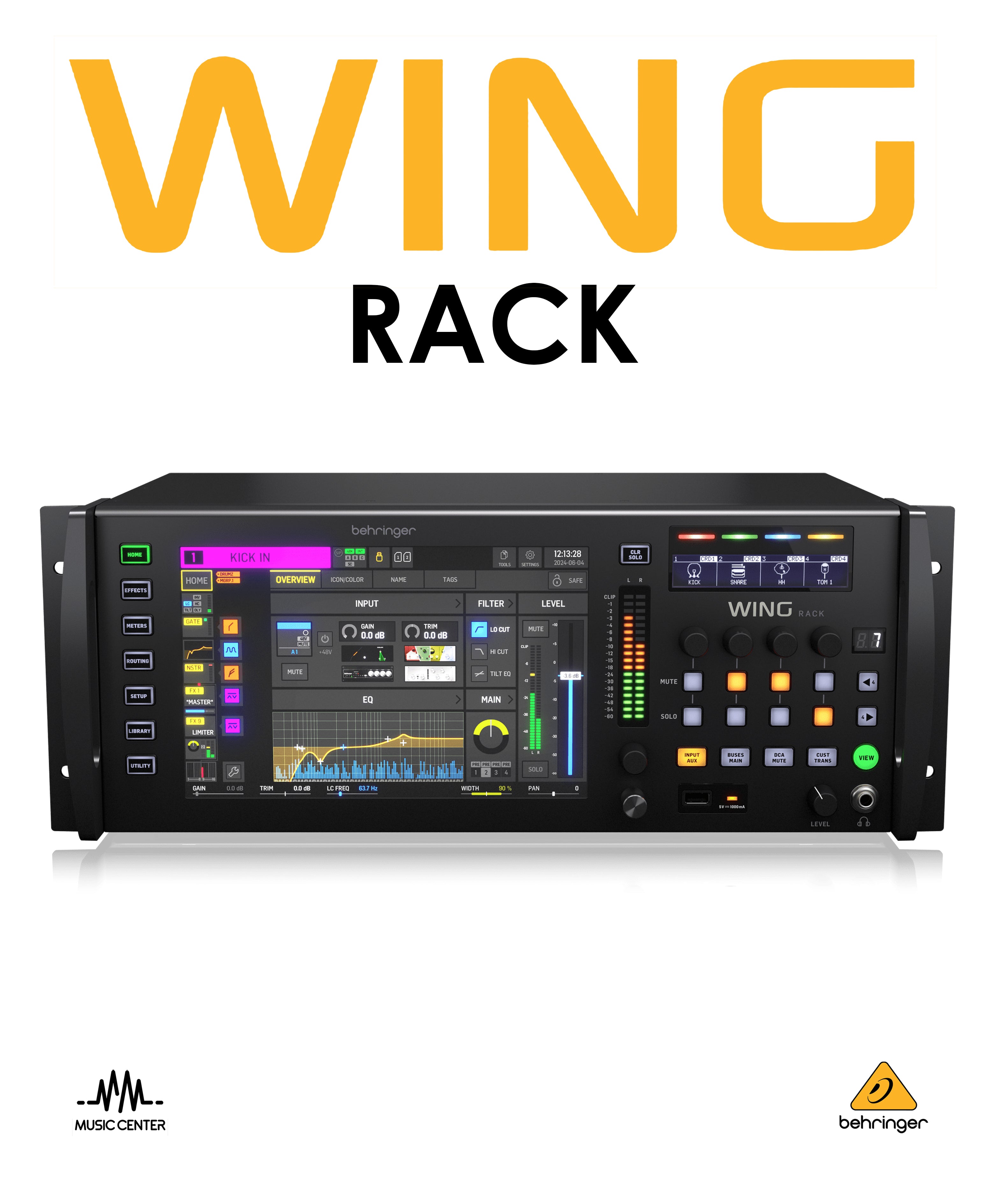

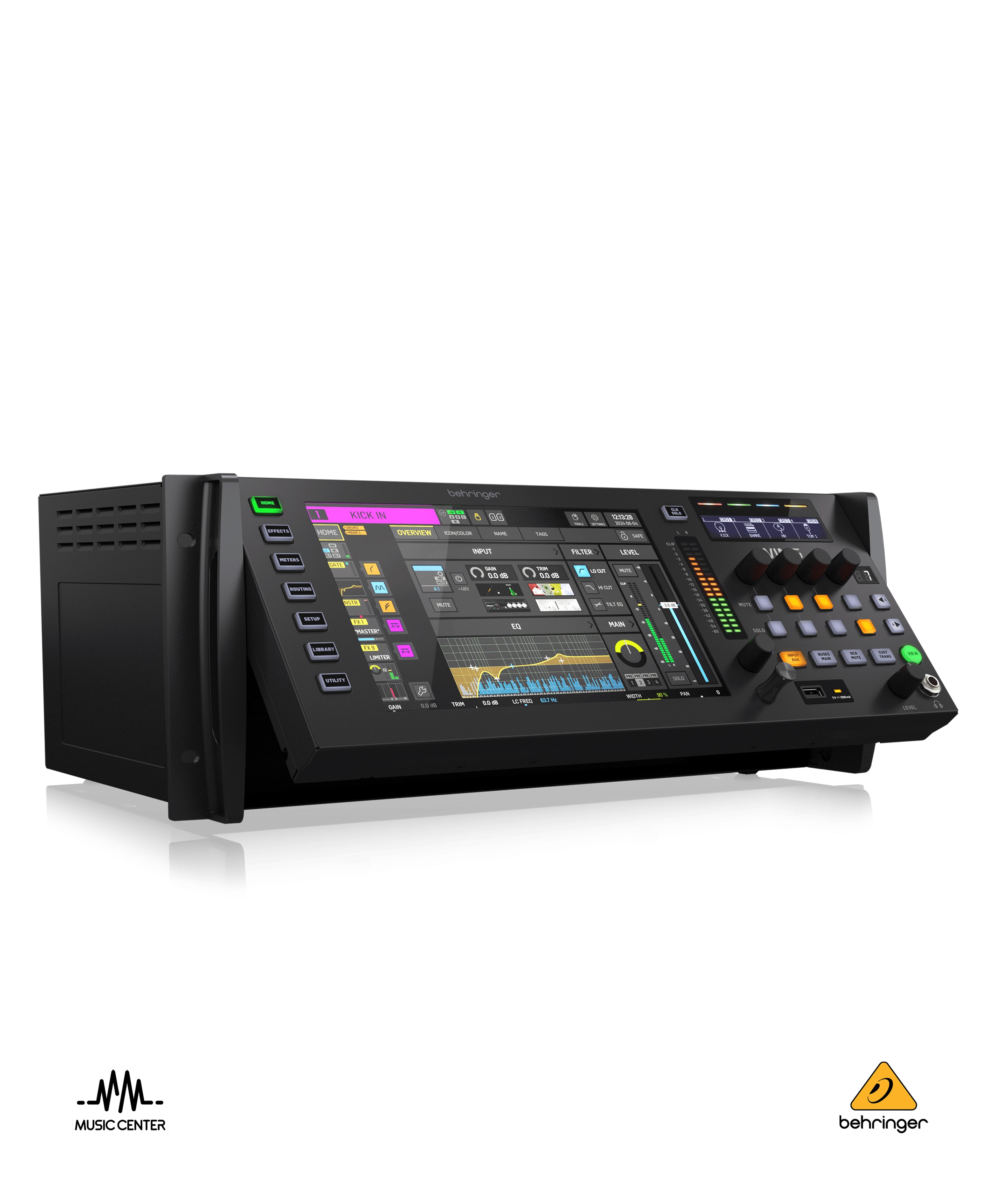

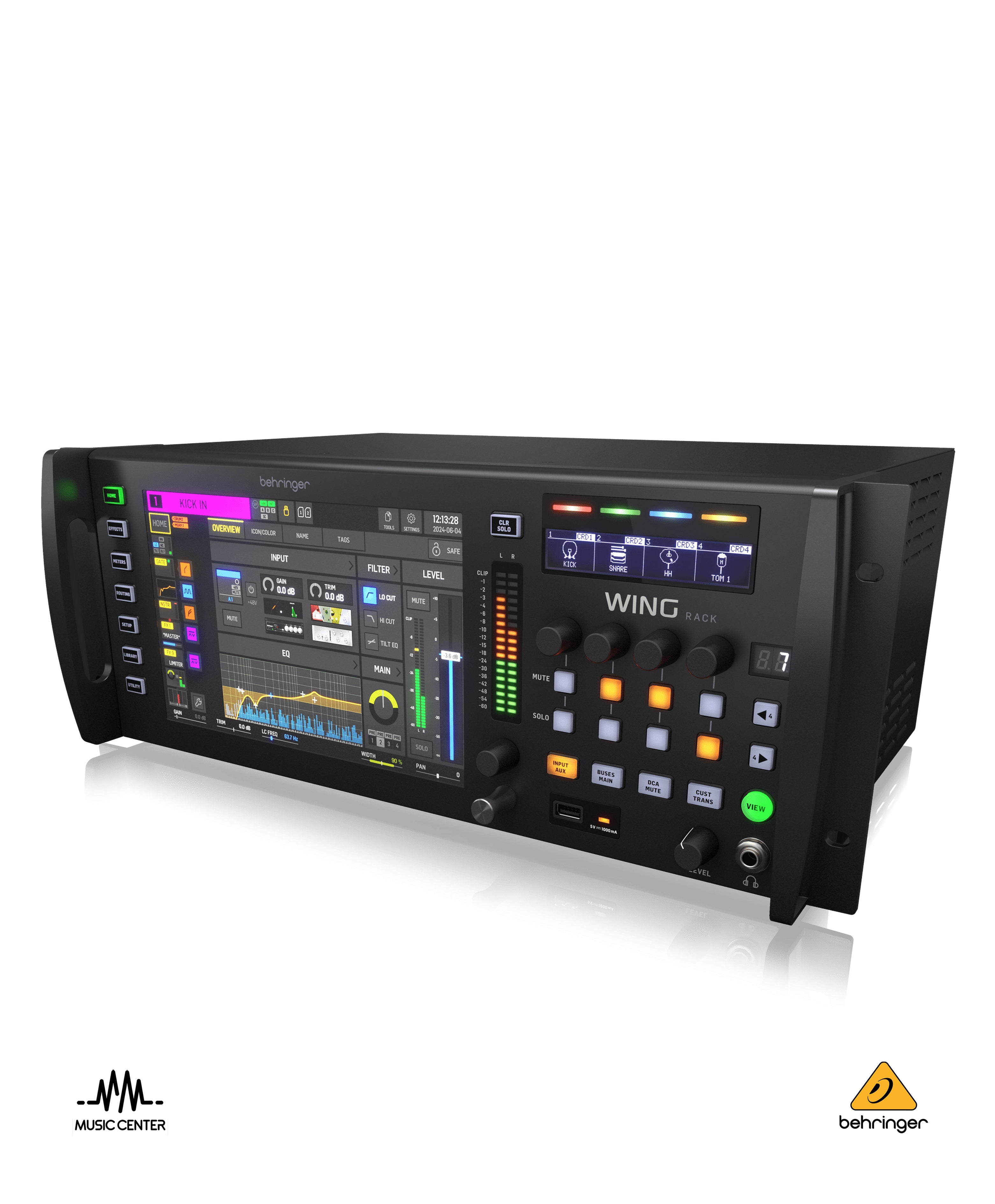

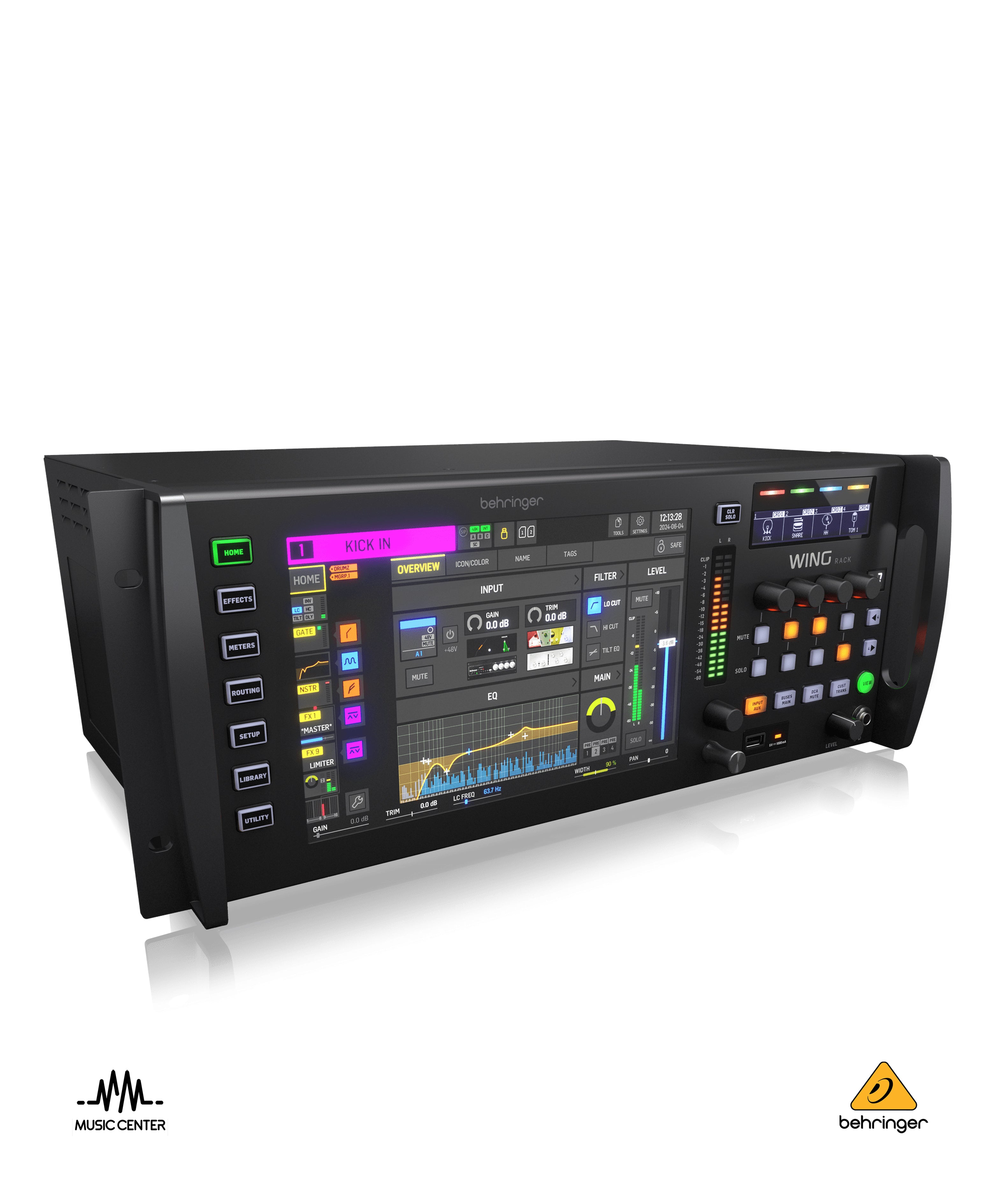

Behringer WING Rack 48 Channel Digital Mixer

Features :

• Boasts identical processing power, channel count, effects, expansion slots, and digital I/O to the full-size WING console
• 48-stereo-channel digital mixer with 40 stereo input processing channels and 8 stereo aux channels
• 28 stereo buses — 16 stereo aux buses, 8 stereo matrices, and 4 stereo mains
• 10.1-in. capacitive touchscreen provides full access to all features and parameters — no tablet required
• A suite of external remote control software facilitates offline mixing on mobile and desktop
• 24 Midas Pro mic preamps and 8 Midas outputs ensure you capture high-quality sound
• 3 AES50 ports provide plug-and-play remote I/O connectivity for up to 144 input and output signals
• AES50 networks are compatible with Midas M32 and Behringer X32 mixers
• 32-channel StageConnect interface for personal monitoring or analog I/O boxes
• Includes AES/EBU stereo digital I/O, a headphone connector, MIDI I/O, and GPIO ports
• 4 additional rear-panel stereo outputs with high-performance headphone amplifiers are tailor-made for IEM applications
• Compatible with Behringer and Midas digital snakes, including the S16, S32, SD8, SD16, DL16, and DL32
• WING-LIVE card captures up to 64 channels of 32-bit/48kHz audio to a pair of SD or SDHC cards
• Optional expansion cards supply Dante support
• Built-in 48-in/48-out USB audio interface
• Sources put the emphasis on your source audio rather than on your inputs and channels
• Apply names, icons, and colors to each Source for at-a-glance identification
• Each channel can be either mono, stereo, or mid-side — no channel linking required
• 16 true-stereo processors with effects from Pultec, SSL, SPL, Neve, Focusrite, dbx, Universal Audio, elysia, and Empirical Labs
• Space-saving 4U rackmount form factor


• Type: Digital Mixer
• Channels: 48 Stereo
• Inputs - Mic Preamps: 24 x XLR-1/4" combo (mic/line)
• Phantom Power: Yes
• Inputs - Digital: 1 x XLR (AES/EBU), 3 x EtherCON (AES50 SuperMAC), 1 x XLR (StageCONNECT)
• Outputs - Digital: 1 x XLR (AES/EBU), 3 x EtherCON (AES50 SuperMAC), 1 x XLR (StageCONNECT)
• Outputs - Main: 8 x XLR
• Send/Return I/O: 8 x 1/4" TRS (aux in), 8 x 1/4" TRS (aux out)
• Inserts: Dual Inserts per Bus, FX Insert Slot
• Busses/Groups: 8 x Stereo Matrix, 4 x Stereo Mains, 16 x Aux Stereo Bus
• Data I/O: 2 x Ethernet (control/audio network)
• USB: 1 x Type B, 1 x Type A
• Computer Connectivity: USB 2.0, 24-bit/48kHz (48 x 48)
• MIDI I/O: In/Out
• I/O Expansion Slots: 1 x Expansion Port (24-bit/48kHz)
• Headphones: 4 x 1/4"
• EQ Bands: 6-band Parametric EQ (channel), 8-band Parametric EQ (bus), Additional EQs and Configurations
• Effects: 8 x Premium FX Stereo Processors, 8 x Standard FX Stereo Processors, 5 x Variable Plug-in Slots
• Signal Processing: Full Dynamics Processing
• DAW Control: Yes (HUI, Mackie)
• Screen: 10" Capacitive Touchscreen
• Rackmountable: Yes, 4HU
