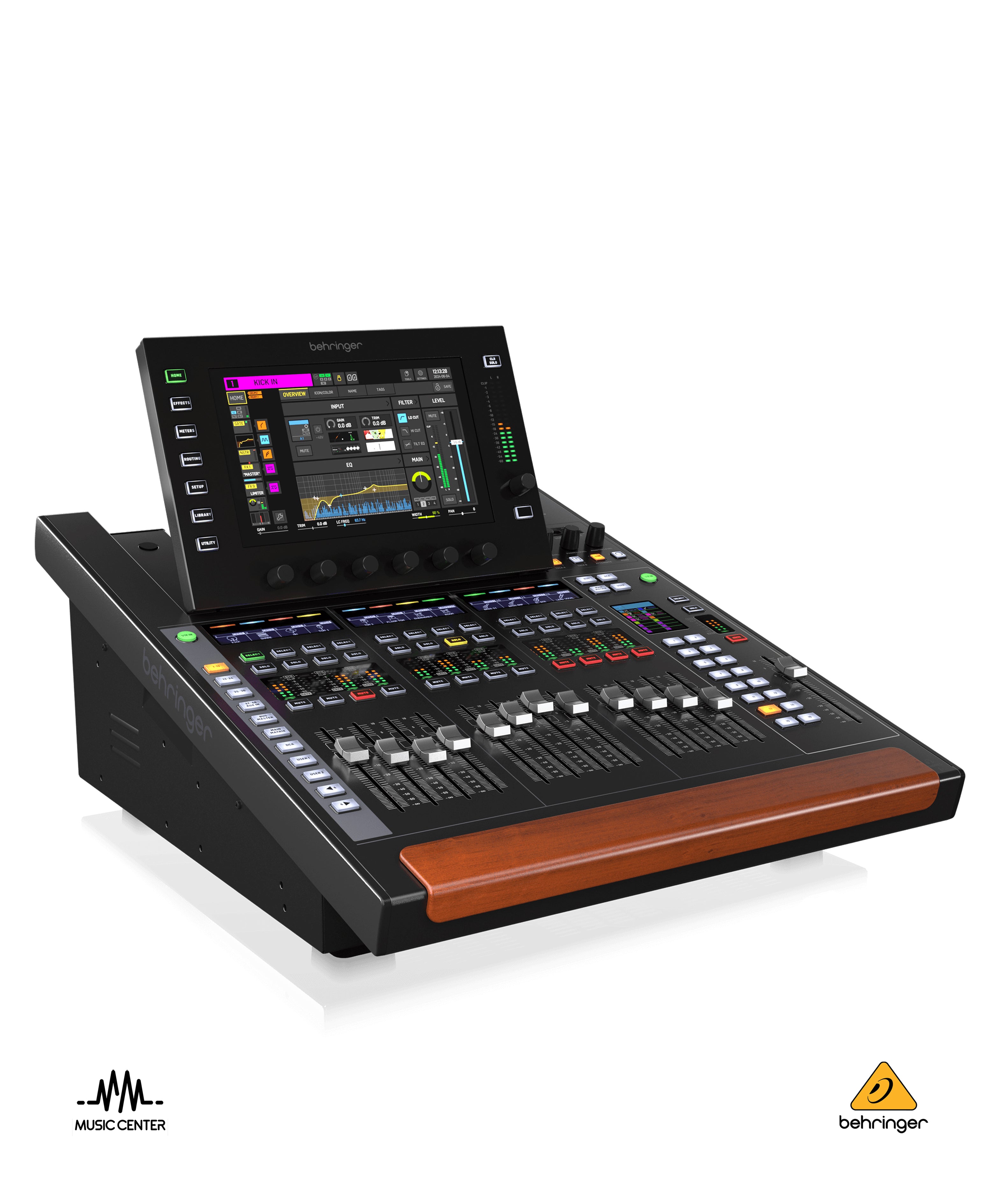

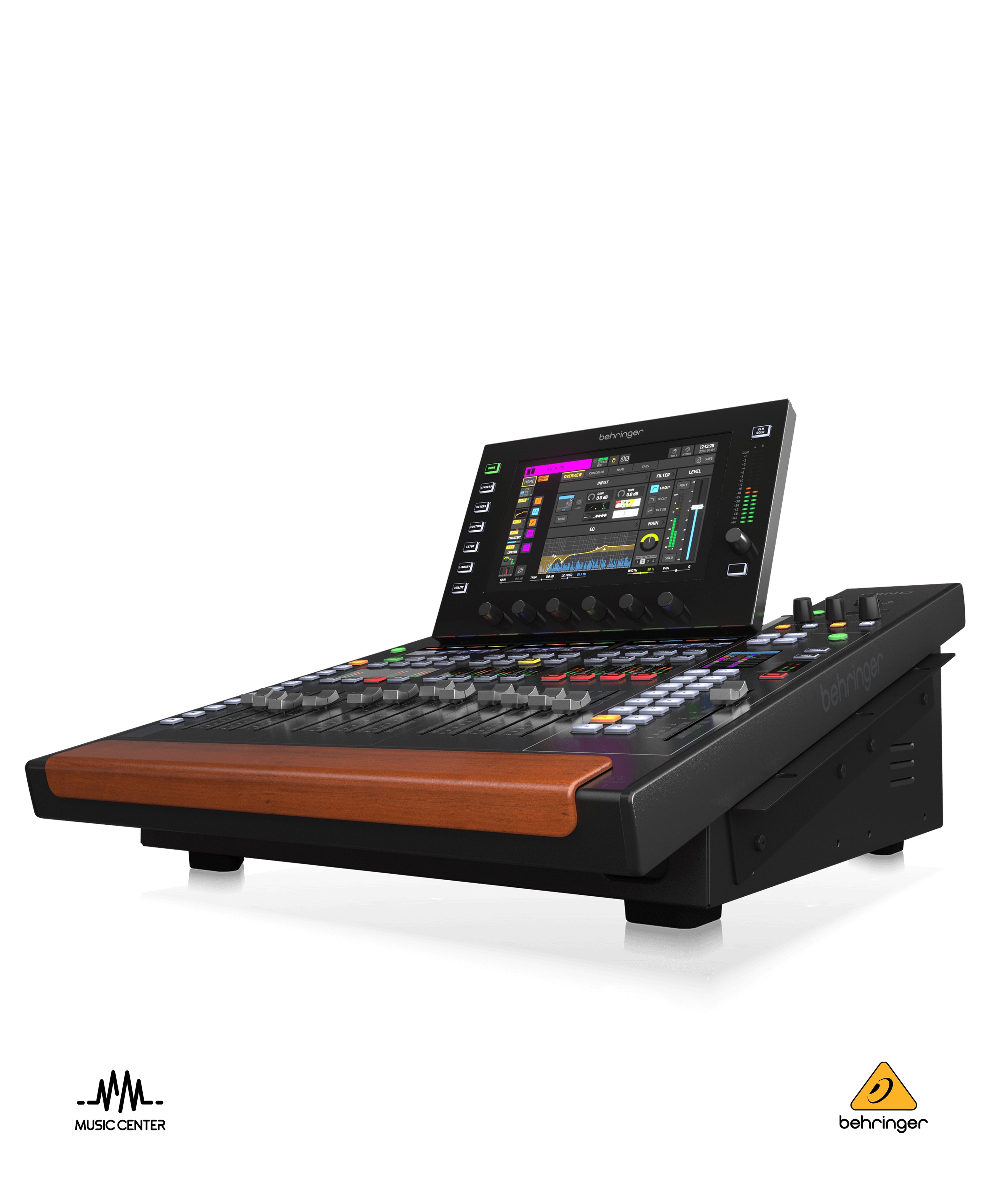

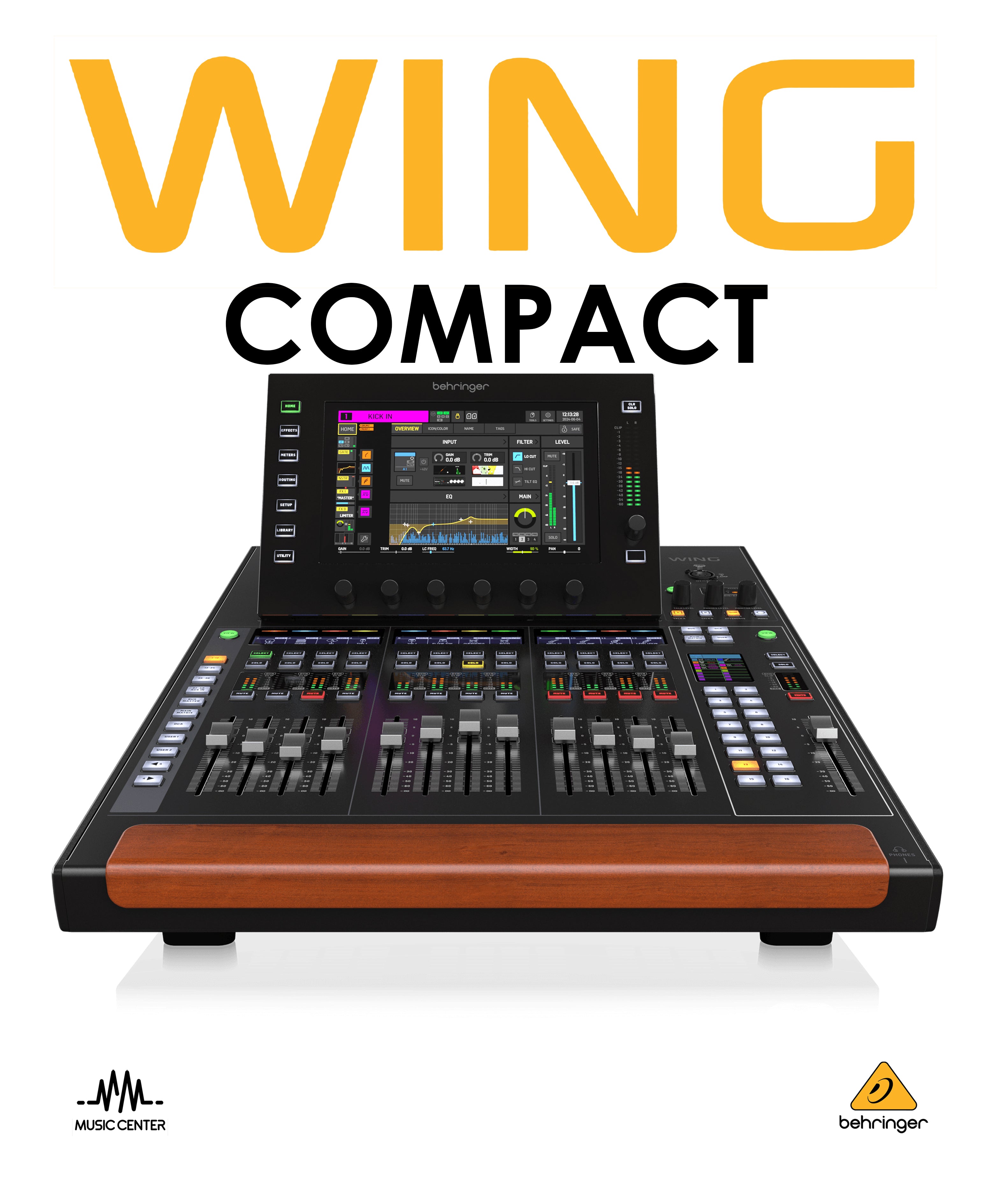

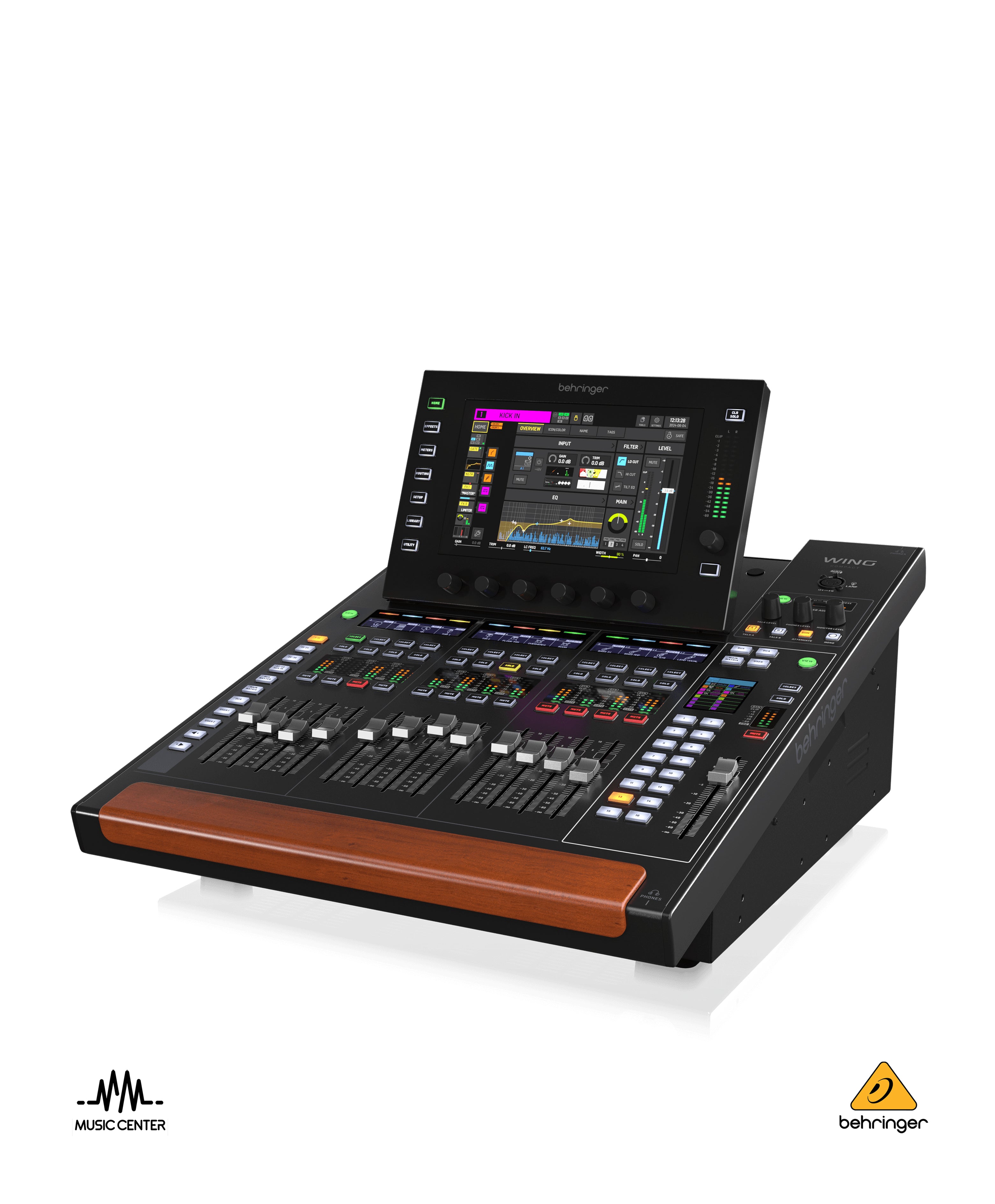

Behringer WING Compact 48 Channel Digital Mixer

Features:

• Boasts identical processing power, channel count, effects, expansion slots, and digital I/O to the full-size WING
• 48-stereo-channel digital mixer with 40 stereo input processing channels and 8 stereo aux channels
• 28 stereo buses — 16 stereo aux buses, 8 stereo matrices, and 4 stereo mains
• 13 smooth-feeling motorized 100mm faders in 3 separate, configurable sections
• 10.1-in. capacitive touchscreen, adjustable display wheel, and rotary controls provide touch-sensitive channel editing
• Enhanced customization using 8 front buttons to do whatever your workflow needs
• Bus/Main/DCA section for fader usage and effect and DCA spill
• 24 Midas Pro mic preamps and 8 Midas outputs ensure you capture high-quality sound
• 3 AES50 ports provide plug-and-play remote I/O connectivity for up to 144 input and output signals
• AES50 networks are compatible with Midas M32 and Behringer X32 mixers
• 32-channel StageConnect interface for personal monitoring or analog I/O boxes
• Includes AES/EBU stereo digital I/O, a headphone connector, MIDI I/O, and a GPIO port
• Compatible with Behringer and Midas digital snakes, including the S16, S32, SD8, SD16, DL16, and DL32
• WING-LIVE card captures up to 64 channels of 32-bit/48kHz audio to a pair of SD or SDHC cards
• Optional expansion cards supply Dante support
• Built-in 48-in/48-out USB audio interface with HUI and Mackie Control DAW remote functionality
• Sources put the emphasis on your source audio rather than on your inputs and channels
• Apply names, icons, and colors to each Source for at-a-glance identification
• Each channel can be either mono, stereo, or mid-side — no channel linking required
• 16 true-stereo processors with effects from Pultec, SSL, SPL, Neve, Focusrite, dbx, Universal Audio, elysia, and Empirical Labs
• 19-in. rackmountable in 3 positions


Specifications

• Type: Digital Mixer
• Channels: 48 Stereo
• Inputs - Mic Preamps: 24 x XLR-1/4" combo (mic/line)
• Phantom Power: Yes

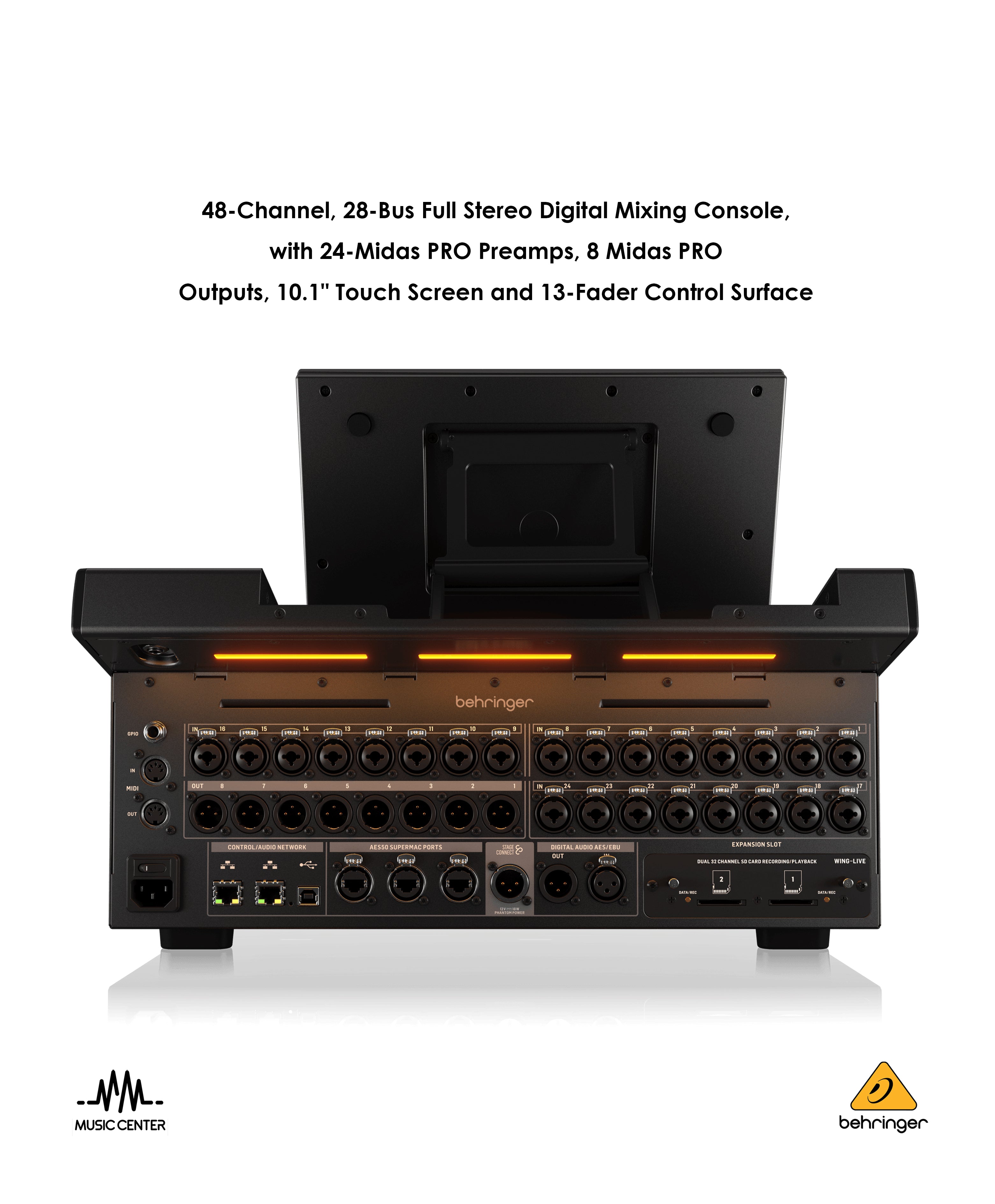

• Outputs - Main: 8 x XLR
• Inputs - Digital: 1 x XLR (AES/EBU), 3 x EtherCON (AES50 SuperMAC), 1 x XLR (StageCONNECT)
• Outputs - Digital: 1 x XLR (AES/EBU), 3 x EtherCON (AES50 SuperMAC), 1 x XLR (StageCONNECT)
• Send/Return I/O: 8 x 1/4" TRS (aux in), 8 x 1/4" TRS (aux out)
• Busses/Groups: 8 x Stereo Matrix, 4 x Stereo Mains, 16 x Aux Stereo Bus
• Inserts: Dual Inserts per Bus, FX Insert Slot
• MIDI I/O: In/Out
• Data I/O: 2 x Ethernet (control/audio network)
• Headphones: 2 x 1/4"
• USB: 1 x Type B, 1 x Type A
• Computer Connectivity: USB 2.0, 24-bit/48kHz (48 x 48)
• Remote: 1 x 1/4" (GPIO)
• I/O Expansion Slots: 1 x Expansion Port (24-bit/48kHz)
• Faders: 12 x 100mm Motorized
• A/D Resolution: Up to 24-bit/192kHz
• EQ Bands: 6-band Parametric EQ (channel), 8-band Parametric EQ (bus), Additional EQs and Configurations
• Effects: 8 x Premium FX Stereo Processors, 8 x Standard FX Stereo Processors, 5 x Variable Plug-in Slots
• Signal Processing: Full Dynamics Processing
• DAW Control: Yes (HUI, Mackie)
• Screen: 10" Capacitive Touchscreen, Adjustable Swivel
• Storage: 2 x SD Card Slot (dual 32 track max)
• Power Source: Standard IEC AC cable
